880GP

FIXED POLYGONAL WRENCHES
« PREVIOUS page | NEXT item »
bihexagon ring spanners
https://sicu.info/en-US/880GP | Go to products page no. 236 »

Orig. Gedore

ISO 3318 | ISO 1085 | ISO 10104 I | DIN 838

According to DIN 838-ISO 3318 - ISO 1085 - ISO 10104.
In CHROME VANADIUM steel. Double open ended, bihexagonal.
Special head profile also suited for box nut.
Very long type for stress reduction and easy performance.
Finely worked. Chrome plated finish.

MODEL WITH OPENINGS IN US INCH SIZES.

What do the rules mentioned in the description talk about?

  • ISO 3318: Assembly tools for screws and nuts - Open-ended wrenches, socket wrenches and combination wrenches - Maximum head widths
  • ISO 1085: Tools for screws and nuts - Double-ended spanners - Combination of openings
  • ISO 10104 I: Tools for screws and nuts - Double offset ring spanners and double curved ring spanners - Outside dimensions
  • DIN 838: Deep-offset double ring spanners - Test torques according to series A
What do you want to do?
ATTACHED FILES related to the product
Spare parts and accessories »
NEWS related to the product»

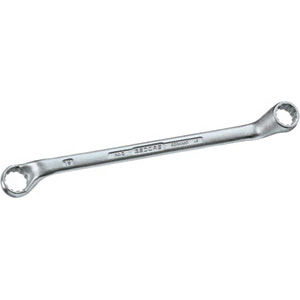

880GP - FIXED POLYGONAL WRENCHES - Orig. Gedore
 Cod. Art.Cad.Min. qtyOpening
inch		Opening
mm		Overall length
mm		Cod. Prod.WeightNote
(*)880GP 9/16 5/8€ 33,7009/16x5/814,29x15,87225Più dettagli20.155
(*)880GP19/3211/16€ 18,60019/32x11/1615,08x26,99245Più dettagli20.21
(*)880GP 5/8 11/16€ 19,3005/8x11/1615,87x17,46245Più dettagli20.21
(*)880GP1.1/1611/4€ 77,9001.1/16x1.1/426,99x31,75370Più dettagli20.68
(*)880GP1.1/815/16€ 40,8001.1/8x1.5/1628,58x33,34370Più dettagli20.68
