8764

SHELL-END MILLS
« PREVIOUS page | NEXT item »
end mills
https://sicu.info/en-US/8764 | Go to products page no. 1260 »

Prod. SCU

UNI 8250 | ISO 1641/2 | DIN 845

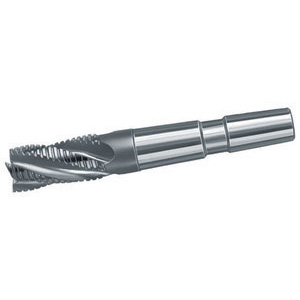

Spiral flute end mills for SEMI-FINISHING. Short series.
DIN 845 B - UNI 8250 - ISO 1641/2. Morse taper shank and threaded hole.
Cutting tolerance J14.
Ø 16 to 22mm=4 flute/Ø 24 to 32mm=5 flute

HSS-E COBALT 8%

What do the rules mentioned in the description talk about?

  • UNI 8250: Two-flute cylindrical end mills with Morse taper shank and tapped hole, standard series
  • ISO 1641/2: End mills and slot drills - Part 2: Dimensions and designation of end mills with Morse taper shank
  • DIN 845: End mills with Morse taper shank
What do you want to do?
ATTACHED FILES related to the product
Spare parts and accessories »
NEWS related to the product»
8764 - SHELL-END MILLS - Prod. SCU8764 - SHELL-END MILLS - Prod. SCU
 Cod. Art.Cad.Min. qtyØ
mm		Overall length
mm		Cutting edge length
mm		Drive
C.M.		Cod. Prod.WeightNote
(*)8764 16€ 153,0001611732Più dettagli2 0.23
(*)8764 18€ 153,0001811732Più dettagli2 0.26
(*)8764 20€ 202,0002012338Più dettagli2 0.32
(*)8764 22€ 217,0002214038Più dettagli3 0.37
(*)8764 24€ 235,0002414745Più dettagli3 0.47
(*)8764 26€ 262,0002614745Più dettagli3 0.55
(*)8764 28€ 281,0002814745Più dettagli3 0.6
(*)8764 30€ 311,0003015553Più dettagli3 0.95
(*)8764 32€ 376,0003217853Più dettagli4 1.1
