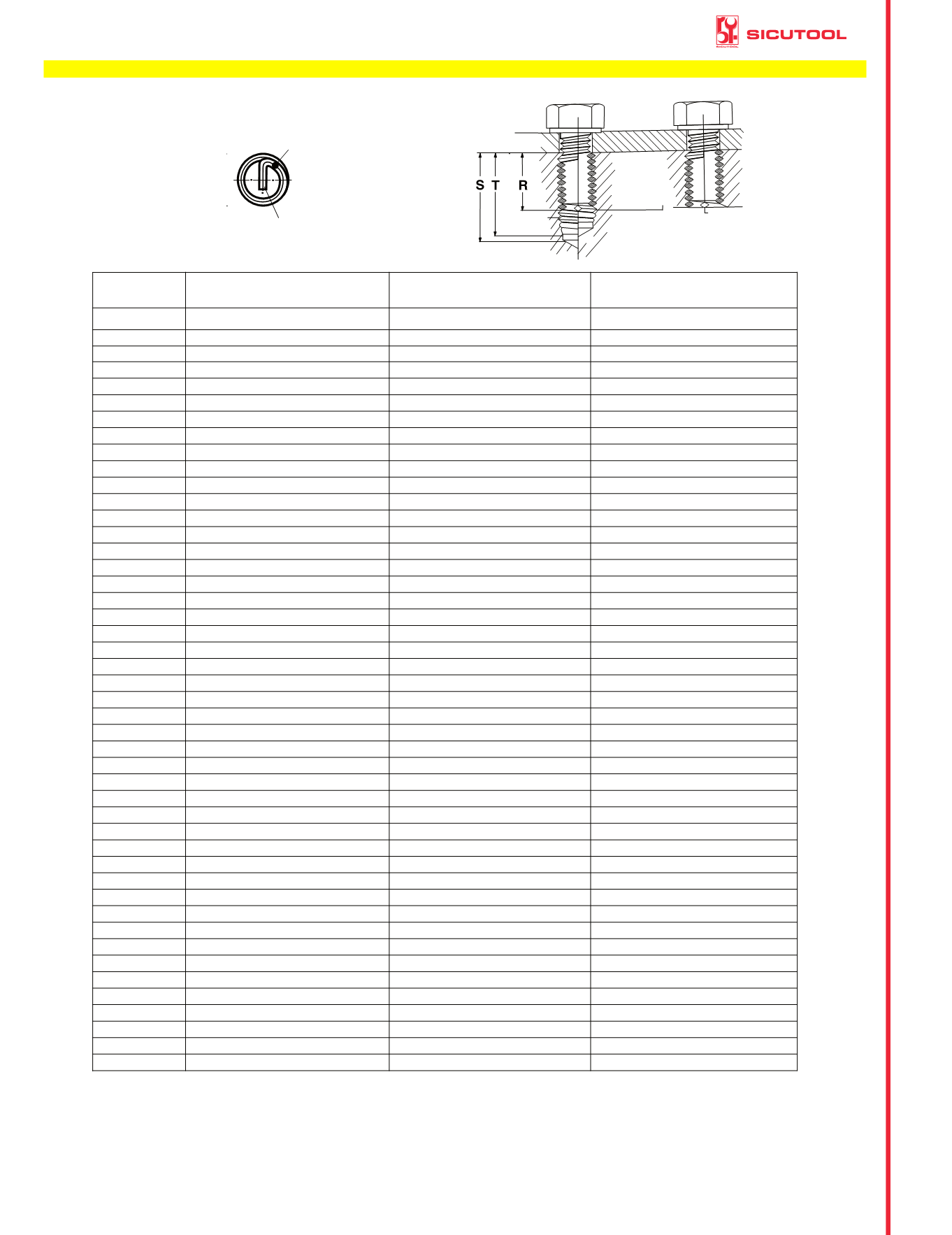

DATI TECNICI FILETTI RIPORTATI DIN 8140
Tabella N. 45/f
Recess
Follower pin
S
(mm)
T
(mm)
R
(mm)
M
1D 1.5D 2D 2.5D 3D 1D 1.5D 2D 2.5D 3D 1D 1.5D 2D 2.5D 3D
M 2 x 0.40
3.80 4.80 5.80 6.80 7.80 3.40 4.40 5.40 6.40 7.40 2.00 3.00 4.00 5.00 6.00
M 2.5 x 0.45 4.52 5.77 7.02 8.27 9.52 4.07 5.32 6.57 7.82 9.07 2.50 3.75 5.00 6.25 7.50
M 3 x 0.50
5.25 6.75 8.25 9.75 11.25 4.75 6.25 7.75 9.25 10.75 3.00
4.50 6.00 7.50 9.00
M 3.5 x 0.60 6.20 7.95 9.70 11.45 13.20 5.60 7.35 9.10 10.85 12.60 3.50 5.25 7.00 8.75 10.50
M 4 x 0.70
7.15 9.15 11.15 13.15 15.15 6.45 8.45 10.45 12.45 14.45 4.00 6.00 8.00 10.00 12.00
M 5 x 0.80
8.60 11.10 13.60 16.10 18.60 7.80 10.30 12.80 15.30 17.80 5.00 7.50 10.00 12.50 15.00
M 6 x 1.00 10.50 13.50 16.50 19.50 22.50 9.50 12.50 15.50 18.50 21.50 6.00 9.00 12.00 15.00 18.00
M 7 x 1.00 11.50 15.00 18.50 22.00 25.50 10.50 14.00 17.50 21.00 24.50 7.00 10.50 14.00 17.50 21.00
M 8 x 1.25 13.62 17.62 21.62 25.62 29.62 12.37 16.37 20.37 24.37 28.37 8.00 12.00 16.00 20.00 24.00
M 8 x 1.00 12.50 16.50 20.50 24.50 28.50 11.50 15.50 19.50 23.50 27.50 8.00 12.00 16.00 20.00 24.00
M 9 x 1.25 14.62 19.12 23.62 28.13 32.62 13.37 17.87 22.37 26.87 31.37 9.00 13.50 18.00 22.50 27.00
M 9 x 1.00 13.50 18.00 22.50 27.00 31.50 12.50 17.00 21.50 26.00 30.50 9.00 13.50 18.00 22.50 27.00
M 10 x 1.50 16.75 21.75 26.75 31.75 36.75 15.25 20.25 25.25 30.25 35.25 10.00 15.00 20.00 25.00 30.00
M 10 x 1.25 15.62 20.62 25.62 30.62 35.62 14.37 19.37 24.37 29.37 34.37 10.00 15.00 20.00 25.00 30.00
M 10 x 1.00 14.50 19.50 24.50 29.50 34.50 13.50 18.50 23.50 28.50 33.50 10.00 15.00 20.00 25.00 30.00
M 11 x 1.50 17.75 23.25 28.75 34.25 39.75 16.25 21.75 27.25 32.75 38.25 11.00 16.50 22.00 27.50 33.00
M 11 x 1.25 16.62 22.12 27.62 33.12 38.62 15.37 20.87 26.37 31.87 37.37 11.00 16.50 22.00 27.50 33.00
M 12 x 1.75 19.87 25.87 31.87 37.87 43.87 18.12 24.12 30.12 36.12 42.12 12.00 18.00 24.00 30.00 36.00
M 12 x 1.50 18.75 24.75 30.75 36.75 42.75 17.25 23.25 29.25 35.25 41.25 12.00 18.00 24.00 30.00 36.00
M 12 x 1.25 17.62 23.62 29.62 35.62 41.62 16.37 22.37 27.37 34.37 40.37 12.00 18.00 24.00 30.00 36.00
M 14 x 2.00 23.00 30.00 37.00 44.00 51.00 21.00 28.00 35.00 42.00 49.00 14.00 21.00 28.00 35.00 42.00
M 14 x 1.50 20.75 27.75 34.75 41.75 48.75 19.25 26.25 33.25 40.25 47.25 14.00 21.00 28.00 35.00 42.00
M 14 x 1.25 19.62 26.62 33.62 40.62 47.62 18.37 25.37 32.37 39.37 46.37 14.00 21.00 28.00 35.00 42.00
M 16 x 2.00 25.00 33.00 41.00 49.00 57.00 23.00 31.00 39.00 47.00 55.00 16.00 24.00 32.00 40.00 48.00
M 16 x 1.50 22.75 30.75 38.75 46.75 54.75 21.25 29.25 37.25 45.25 53.25 16.00 24.00 32.00 40.00 48.00
M 18 x 2.50 29.25 38.25 47.25 56.25 65.25 26.75 35.75 44.75 53.75 62.75 18.00 27.00 36.00 45.00 54.00
M 18 x 2.00 27.00 36.00 45.00 54.00 63.00 25.00 34.00 43.00 52.00 61.00 18.00 27.00 36.00 45.00 54.00
M 20 x 2.50 31.25 41.25 51.25 61.25 71.25 28.75 38.75 48.75 58.75 68.75 20.00 30.00 40.00 50.00 60.00
M 20 x 2.00 29.00 39.00 49.00 59.00 69.00 27.00 37.00 47.00 57.00 67.00 20.00 30.00 40.00 50.00 60.00
M 20 x 1.50 26.75 36.75 46.75 56.75 66.75 25.25 35.25 45.25 55.25 65.25 20.00 30.00 40.00 50.00 60.00
M 22 x 2.50 33.25 44.25 55.25 66.25 77.25 30.75 41.75 52.75 63.75 74.75 22.00 33.00 44.00 55.00 66.00
M 22 x 2.00 31.00 42.00 53.00 64.00 75.00 29.00 40.00 51.00 62.00 73.00 22.00 33.00 44.00 55.00 66.00
M 22 x 1.50 28.75 39.75 50.75 61.75 72.75 27.25 38.25 49.25 60.25 71.25 22.00 33.00 44.00 55.00 66.00
M 24 x 3.00 37.50 49.50 61.50 73.50 85.50 34.50 46.50 58.50 70.50 82.50 24.00 36.00 48.00 60.00 72.00
M 24 x 2.00 33.00 45.00 57.00 69.00 81.00 31.00 43.00 55.00 67.00 79.00 24.00 36.00 48.00 60.00 72.00
M 27 x 3.00 40.50 54.00 67.50 81.00 94.50 37.50 51.00 64.50 78.00 91.50 27.00 40.50 54.00 67.50 81.00
M 27 x 2.00 36.00 49.50 63.00 76.50 90.00 34.00 47.50 61.00 74.50 88.00 27.00 40.50 54.00 67.50 81.00
M 30 x 3.50 45.75 60.75 75.75 90.75 105.75 42.25 57.25 72.25 87.25 102.25 30.00 45.00 60.00 75.00 90.00
M 30 x 3.00 43.50 58.50 73.50 88.50 103.50 40.50 55.50 70.50 85.50 100.50 30.00 45.00 60.00 75.00 90.00
M 33 x 3.50 48.75 65.25 81.75 98.25 114.25 45.25 61.25 78.25 94.75 111.25 33.00 49.50 66.00 82.50 99.00
M 36 x 4.00 54.00 72.00 90.00 108.00 126.00 50.00 68.00 86.00 104.00 122.00 36.00 54.00 72.00 90.00 108.00
M 36 x 3.00 49.50 67.50 85.50 103.50 121.50 46.50 64.50 82.50 100.50 118.50 36.00 54.00 72.00 90.00 108.00
M 39 x 4.00 57.00 76.50 96.00 115.50 135.00 53.00 72.50 92.00 111.50 131.00 39.00 58.50 78.00 97.50 117.00
M 42 x 4.50 62.25 83.25 104.25 125.25 146.25 57.75 78.75 99.75 120.75 141.75 42.00 63.00 84.00 105.00 126.00
M 42 x 3.00 55.50 76.50 97.50 118.50 139.50 52.50 73.50 94.50 115.50 136.50 42.00 63.00 84.00 105.00 126.00
